Kerbs are one of those elements in street design that most people overlook. They sit quietly along the edge of the road, yet they play a major role in how our streets operate. Kerbs direct stormwater towards drains, help prevent flooding on footpaths, and provide a clear separation between vehicles and pedestrians.
Beyond drainage, kerbs also strengthen the road edge, support pavement structure, and guide vehicle movement in high-traffic areas. Different kerb profiles are used for various environments, whether it’s barrier kerbs on busy city streets, mountable kerbs near residential driveways, or lower profiles in regional areas to improve vehicle access.
With that in mind, Traffic Products Australia has created this guide to show how kerb keeps our streets safe, dry, and well organised.

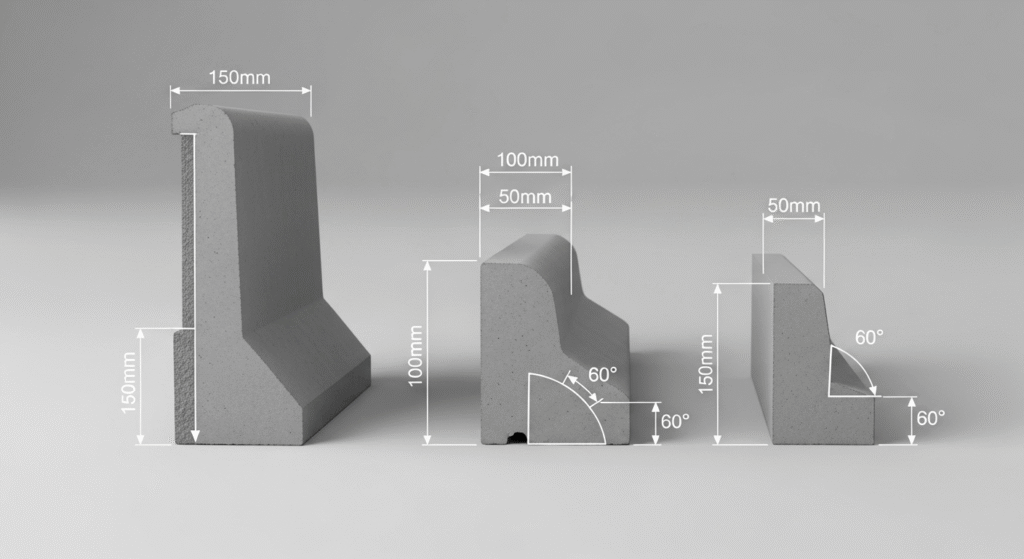

Different Roads Need Different Kerbs
Each road type requires a specific kerb profile that suits its purpose. Barrier kerbs stop vehicles from entering pedestrian areas, mountable kerbs allow smooth access to driveways and medians, and roll-over kerbs or flush kerbs are used on cycleways or shared zones for safer crossings.
When designing roads, engineers carefully consider safety, accessibility, and drainage before selecting the type of kerb. Busy streets often use barrier kerbs to protect pedestrians and define parking edges, while quieter roads use mountable kerbs to make driveway access easier and keep rainwater flowing into gutters.
National Standards for Kerb Design
Kerbs must meet strict national and state standards to guarantee safety and consistency.
- AS 2876 sets the technical specifications for concrete kerb and gutter systems.
- Austroads Guides define where different kerb types should or shouldn’t be used, depending on speed and function.
- State authorities issue standard drawings that match these national codes.
A key rule: barrier or semi-mountable kerbs should never be installed near roads with traffic over 70 km/h, as they can become a tripping hazard rather than a safety feature. Proper kerb height and slope are essential to maintain drainage without affecting vehicle safety.
How Kerbs Manage Rainwater
Kerbs help control rainwater and stop it from pooling on roads. The kerb and gutter collect water and direct it into nearby storm drains, keeping the road safe to drive on and the footpath dry.
| Drainage Element | Purpose | How It Works |
| Crossfall and Gradient | Drains rainwater towards the gutter | The road surface is slightly sloped so water naturally flows to the kerb edge |
| Kerb Height | Stops water from spilling onto the footpath | The right height keeps water contained in the gutter during normal rain, but allows overflow in extreme conditions |
| Drain Openings | Prevent flooding in low areas | Placed at regular points and low areas to catch water before it pools or floods |
During heavy rain, a well-built kerb system keeps roads usable and pedestrians safe.
Proper Construction Techniques
The production of straight precast concrete kerbs is carried out by specialised machines that create uniform shapes. Workers build curved sections and detailed areas, including corners and driveways, by hand using moulds and tools.
The base prevents sinking, smooth joins maintain water flow between kerb types, and proper curing stops cracks. Correct alignment ensures effective drainage and allows vehicles to travel safely along the edge.
Access and Inclusion
Kerbs influence how people move through public spaces. Poor design can create obstacles for individuals with mobility challenges. The AS 1428.1 ensures kerb ramps offer safe, smooth access for wheelchairs, prams, and walkers, with limits on slope (1:8), minimum width (1000 mm), and level landings.
Modern bus stops and shared zones also use shaped kerbs that make boarding easier. These thoughtful designs help create streets that are safer, more inclusive, and still effective for drainage.
Field Failures and Fast Remedies
Concrete kerbs eventually deteriorate over time. The main causes include tree root damage, poor base preparation, and heavy vehicle impacts. Maintenance crews inspect kerbs regularly as part of road asset programs to seal cracks and replace damaged sections when needed.
Even the strongest concrete weakens over time. Tree roots, heavy vehicles, and poor foundations can all cause damage. Maintenance crews regularly inspect kerbs as part of road asset programs, sealing cracks or replacing sections when needed.
Clearing debris from gutters is also vital, since clogged drainage causes water buildup that shortens the lifespan of kerbs.
Site Operations and Lifting Requirements
Kerb installation in active traffic zones requires careful planning to manage vehicles, pedestrians, and existing services. Contractors coordinate traffic control, safe work zones, and equipment movement to avoid delays and ensure public safety. Precast kerb units, drainage structures, and edge restraints must be handled with certified lifting systems to prevent damage and maintain correct alignment.
Crane selection depends on load weight, lift radius, and site access. Compact truck-mounted cranes suit suburban projects, while mobile cranes are used on arterial roads and commercial corridors. Efficient lifting and placement reduce installation time, maintain finish quality, and ensure compliance with road authority standards.
QA and Sign-Off
Before approval, each stage of a kerb project undergoes a detailed inspection. Teams verify height and alignment, review concrete strength data, and confirm that driveway and crossing transitions meet required standards. Councils maintain photographic records as part of the documentation process.
Even minor level errors can affect drainage and accessibility, so strong quality assurance ensures kerb systems remain reliable over time.
Conclusion
Kerbs rarely receive attention, yet they are a fundamental component of road infrastructure. They control stormwater, support road edges, improve pedestrian safety, and help organise traffic movement. Their performance depends on correct design, material selection, and installation quality.Traffic Products Australia improves kerb performance with modern solutions like rubber kerbing and traffic islands, offering a flexible, sustainable alternative to traditional concrete. These systems reduce cracking, speed up installation, and support eco-friendly construction using recycled materials. Whether it’s a simple kerb line or a full kerb rail system, the right design keeps people safe, protects property, and shapes the roads of tomorrow.
